| Business Type | Exporter, Supplier |
| Accuracy | 0.1% For RTD & 0.2% For Thermocouple |
| Brand Name | ITHERM |
| Type | Temperature Transmitters |
| Click to view more | |
Product Details
Model Name/Number
TMT 131
Rated Supply Voltage
24 VDC
Response Time
0.3 MicroA
Output Type
4 To 20 MA
Input
RTD PT 100, TC J,K,T,E,N,R,S,B
Features
- 2-wire technology, 4 to 20mA analogue output
- High accuracy in total ambient temperature range
- Internal cold junction
- Wide voltage supply range
- Customer specific measurement range setting or expanded SETUP
- Simple and user friendly software
- USB communication
Specifications

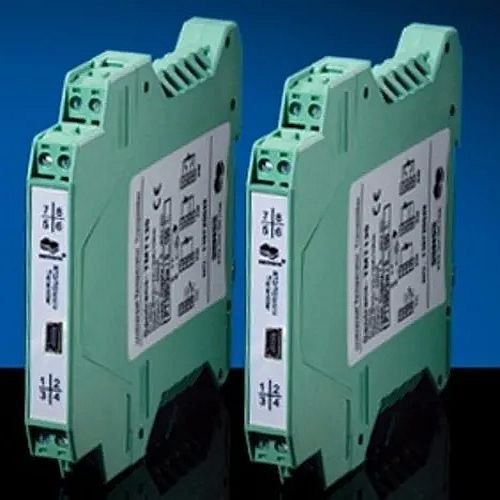

- DIN Rail Temperature Transmitter TMT130 for converting various input signals into a scalable 4 to 20mA analogue output signal
- Wide voltage supply range
- Expanded resistance input (max 2KO)
- Expanded voltage input (max 2KmV)
Technical data
- Output: 4 to 20mA
- Supply voltage: 7.5 to 45VDC
- Input: RTD, TC, Ohm, mV
- Cold junction: Internal
- Accuracy(Pt100): <0.2K or 0.08%
- Influence of ambient: Negligible
- Load influence: Negligible
- Power supply influence: Negligible
- Resolution: 0.3uA
- Installation: DIN Rail
Technical Specification
| Output | 4 to 20 mA |
| Supply Voltage | 7.5 to 45 VDC |
| Input | RTD, TC, Ohm, mV |
| Cold Junction | Internal |
| Accuracy (Pt100) | < 0.2K or 0.08% |
| Influence of Ambient | Negligible |
| Load Influence | Negligible |
| Power Supply Influence | Negligible |
| Resolution | 0.3 µA |
| Installation | DIN Rail |
