| Business Type | Exporter, Supplier |
| Accuracy | 0.1% For RTD,0.2% For Thermocouple |
| Brand Name | I TRANS |
| Application | Converts All Thermocouple,RTD,MV,Ohms Signals Into 4-20 MA Output |
| Click to view more | |
Product Details
Model Name/Number
TMT 131
Operating Range
0 To 50 C
Supply Voltage Limits
7.5 VDC To 45 V DC
Output Type
4 To 20 MA
Input Type
RTD PT 100, TC J, K, N, T, E, R, S, B
Configuration
USB Cable For Programming With Software
Features
- 2-wire technology, 4 to 20mA analogue output
- High accuracy in total ambient temperature range
- Internal cold junction
- Wide voltage supply range
- Customer specific measurement range setting or expanded SETUP
- Simple and user friendly software
- USB communication
Technical Specification
| Output | 4 to 20 mA |
| Supply Voltage | 7.5 to 45 VDC |
| Input | RTD, TC, Ohm, mV |
| Cold Junction | Internal |
| Accuracy (Pt100) | < 0.2K or 0.08% |
| Influence of Ambient | Negligible |
| Load Influence | Negligible |
| Power Supply Influence | Negligible |
| Resolution | 0.3 µA |
| Installation | DIN Rail |

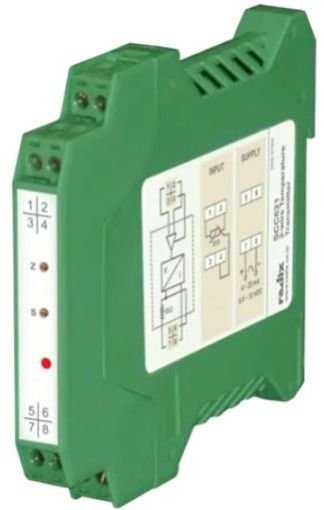

Looking for "45V Din Rail Temperature Transmitter" ?
