6,500.00 - 8,500.00 / Piece( + 18% GST applicable)
| Business Type | Exporter, Supplier |
| Power | 24VDC |
| Application | It Is Used To Interface Analog Sensors With The Control System By Converting Real-world Analog Signa |
| Feature | Reliability |
| Click to view more | |
Product Details
Voltage
24VDC
Operating Temperature
0 TO 55 C
Type
Analog Input Modules
Channel
4,8
Country of Origin
India
Input ranges
Digital Input Modules
Modbus
RS

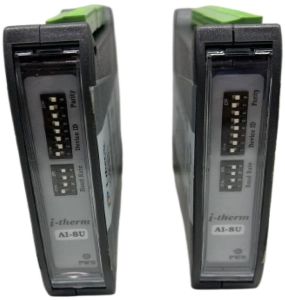

Analog Input Module AI 8U
- 8 Analog Input Channel
- Input Type: Universal DC, mA, RTD, Thermocouple
- Automatic CJC for Thermocouple & LRC for RTD Input
- User settable selectable range for DC V/mV/mA Inputs
- 2 wire Half Duplex, RS 485 Serial Communication Port
- Industry Standard MODBUS RTU Protocol with Programmable ID, Baud Rate & Parity
- Compact Din Rail Mount Enclosure 22.5 (W) x 101 (H) x 119 (D)
- Wide Voltage Supply 18 - 32 VDC (24 V DC Nominal)
- Three Way Isolation eliminates Potential ground loops between Power, Inputs & RS 485 Serial Port
- Programmable soak timer
- Four different start modes for soak timer
- Battery Backup for Soak Timer
- Timer Hold Strategy
- Settable soak time delay
- Time Delay for Compressor
- Universal supply voltage ranges from 90 to 270 VAC
- Supply 24VDC Available on Request
