| Business Type | Manufacturer, Exporter, Supplier |
| Control Action | PID |
| Supply | 90 To 270 VDC |
| Output Type | Analog |
| Click to view more | |
Product Details
Mounting Type
DIN Track Mounting
No Of Digits
4+4
Control Type
Proportional Control
Display Size
48*48 Mm
Size
All DIN Size: 96 X 96 / 48 * 48 / 72*72 / 96 * 48 & 48*96
Output
Relay / SSR / 4 To 20mA / 0 To 10 VDC
Input
All Type Of TCs, RTD PT 100 And All Analogue Input MA & MV
Accuracy
0.3% FSD
Features
- Universal Sensor Input
- Programmable control action PID control/ ON-OFF
- Programmable Input Signal Conditioning (Digital Filter & Zero Offset)
- Optional Current Output Available
- Optional Serial Communication Port
- Soft Start Time for 4-20 mA
- Overshoot Control Protection
- Single Step Ramp Soak
- Alarm Acknowledge & Inhibit function
- Programmable soak timer
- Four different start modes for soak timer
- Battery Backup for Soak Timer
- Timer Hold Strategy
- Settable soak time delay
- Time Delay for Compressor
- Universal supply voltage ranges from 90 to 270 VAC
- Supply 24VDC Available on Request

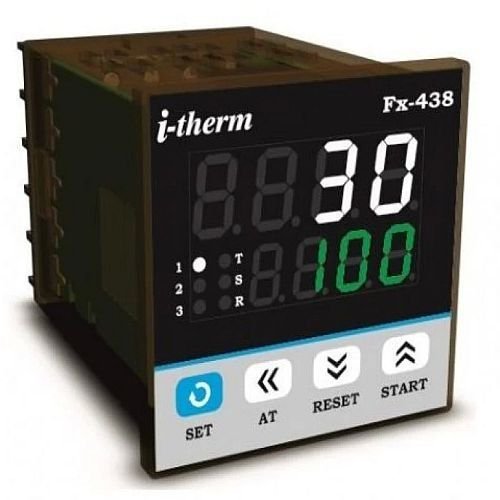

Looking for "Digital Process Controller" ?
