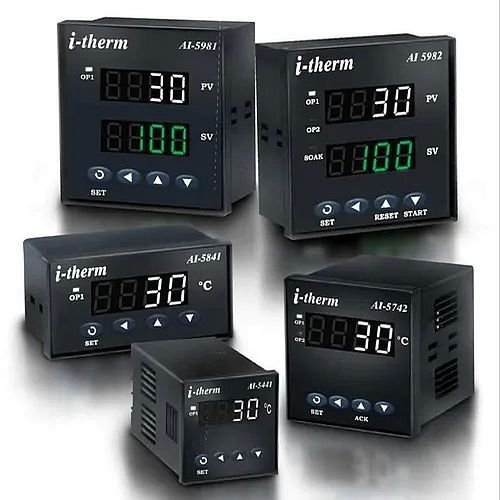

Digital Temperature Controller

Link Copied
1,000.00 / Piece

10 Piece (MOQ)

Business Type Exporter, Supplier
Type Digital
Control Type On-Off
Brand Name ITHERM
Click to view more

Product Details

Controller Type
On/Off Control, Proportional
Input Sensor
Thermocouple, RTD, K, RTD PT 100, J
Size
48*48 Mm, 96*96 Mm, 96*48 Mm, 48*96 Mm
Power
100 To 240 VAC, 24 VDC
Temperature Range
0 To 1600 C
Voltage
90 To 270 VAC
Control Output Type
Relay/SSR, Relay, SSR
Input Type
Thermocouple, RTD
Application
Industrial Use
Display Type
SINGLE And DOUBLE
Sensor Input
All Type Of Thermocouple, RTD PT 100
Power Supply
90 To 270 VAC / 24 VDC SUPPLY
No Of Alarm Modes
1 Alarm
Control Action
On-Off, Time Proportional
Control Output
RELAY Or SSR User Selectable

Features

  • 4 Digit Single Row Display
  • Selectable sensor input (T/C : J,K,R,S & RTD) from keyboard
  • Programmable Lower & Upper set point limits
  • Programmable control action ON-OFF/PID control
  • Programmable hysteresis in ON-OFF mode/li>
  • Programmable time delay to activate output in ON-OFF mode
  • Selectable heat/cool logic in ON-OFF control mode
  • User selectable Relay Or SSR Drive Output
  • Program lock function (To prevent unauthorized tampering)
  • Universal supply voltage ranges from 90 To 270 VAC
  • Available in 5 Standard DIN sizes Specification
