1,500.00 / Piece
| Business Type | Exporter, Supplier |
| Model Name/Number | PI XX |
| Display Range | 4 Digit Single Row |
| Application | To Indicate Process Data |
| Click to view more | |
Product Details
Supply
90 To 270 VAC / 24 VDC On Request
Size/Dimension
All Din Sizes Available
Material
ABS Plastic
Display Type
Digital
Accuracy
0.3% FS
Color
Black
Resolution
T/C: 1 Pt-100: 1/ 0.1 Analog: 1/ 0.1/ 0.01/ 0.001
Output Modbus
RS485
Technical Specification
| Input Specification | ||
| Measurement | Sensor Input | T/C: J, K, R, S, N, T, B |
| RTD: Pt-100 | ||
| Analog: 0-1 VDC, 0-3.3 VDC, | ||
| 0-5 VDC, 0-10 VDC, | ||
| 0-20 mA, 4-20 mA | ||
| Resolution | T/C: 1 | |
| Pt-100: 1/ 0.1 | ||
| Analog: 1/ 0.1/ 0.01/ 0.001 | ||
| Sampling Rate | 250msec | |
| Accuracy | 0.3% FS | |
| Excitation Vltg | 5V, 10V, 12V, 24V (Jumper Selectable) | |
| Serial Communication | ||
| Port | RS 485, Half Duplex | |
| Protocol | Modbus RTU | |
| DC Linear Retransmission | ||
| Current | 0-20mA, 4-20mA(500 ohms Max) | |
| Voltage | 0-10Volt (1 Kohms Max.) | |
| Output Specification | ||
| Relay Output | 5A @ 250V AC/ 30V DC | |
| SSR Drive | 12 VDC @ 30mA | |
| Functional Specification | ||
| Alarm | Low/ High/ Band | |
| General Specification | ||
| Supply Voltage | 90 - 270 VAC/ DC | |
| (24 VDC Available on Request) | ||
| Temperature And Humidity | Operating: 0-50°C | |
| Storage: -20° to 75°C | ||
| 95% RH (Non-condensing) | ||
| Dimensions in mm (H x W x D) | 96 x 96 x 53 | |

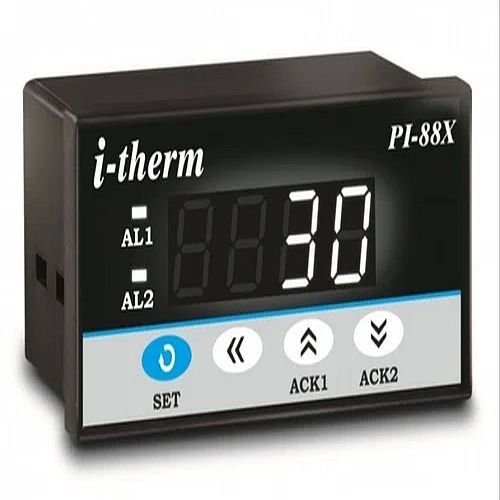

Looking for "Itherm Process Indicator" ?
