| Business Type | Manufacturer, Exporter, Supplier |
| Material | PTFE Coated GI Plate |
| Length | As Per Client Requirement |
| Feature | Quality Tested,Reliable,Sense The Surface Temperature |
| Click to view more | |
Product Details
Wire length
As per client requirement
Type
Thermocouple
Temperature Range
0 To 250 DegreeC
Type Of Thermocouple
K TYPE
Brand Name
ELTEC
Application
Industries,Industrial
Accuracy
+- 1.5 DegreeC Or +- 0.40 %
Cable Length
2 Mrs. / 3 Mtrs / 5 Mtrs.
Sensor Size
25 X 25

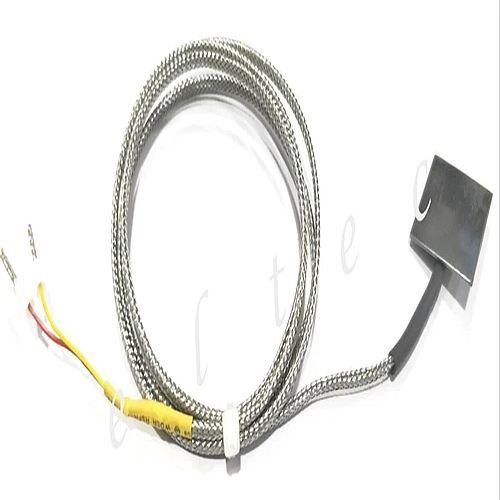

SURFACE PROBE
|
TYPE OF TC |
Measuring Temp. Range |
Thermal Accuracy Class 1 as per IEC EN 60584 -2 |
|
K / J / T / E |
0 °C - 450 °C |
± 0.5 °C or ± 0.40% whichever is greater |
|
PRODUCT FEATURES |
|
|
Element |
As above K / J / T / E as per client’s requirement |
|
Temperature Range |
0° C to 250 °C |
|
Probe Size |
25 x 25 (mm) or as per client’s requirement |
|
Probe Material |
PTFE COATED GI Plate |
|
Extension Wire Length |
2 Mtrs. / 3 Mtrs. / 5 Mtrs. / 10 Mtrs. Or as per your requirement |
|
Extension Wire |
SS BRAIDED K / J / T / E type of cable based on type of thermocouple |
|
Wire Insulation & Sheathing |
FIBER GLASS BRAIDED |
|
Color Coding |
As per ANSI MC 96.1 |
|
Wire Termination |
Pin Connectors |
