Pid Controller
Leading Manufacturers, Exporters and Wholesaler of Digital PID Controller, Universal PID Controller, Fuji PXF9 PID On-Off Temperature Controller, Fuji PXF4 PID On-Off Temperature Controller and Fuji PXF5 PID On-Off Temperature Controller from Rajkot.

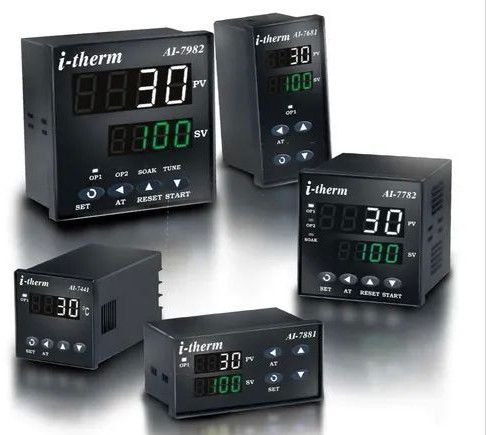

| Business Type | Exporter, Supplier |
| Voltage | 90-270 VAC/DC |
| Type | Digital |
| Rated Power | 100 To 240 VAC |
| Brand Name | ITHERM |
| Control Type | PID |
| Input Type | Thermocouple, RTD |
| Control Output Type | SSR, Relay, Relay/SSR |
| Size | 96*96 Mm, 48*48 Mm, 48*96 Mm, 96*48 Mm |
| Mounting Type | Panel |
| Frequency | 50/60 Hz |
Features
- Low cost, Effective, Easy to use PID Temperature Controller
- 4 Digits Dual Row Display (4-Digits for PV & 4-Digits for SV)
- Selectable sensor input (T/C : J,K,R,S & RTD) from keyboard
- Programmable Lower & Upper set point limits
- Programmable control action ON-OFF/PID control
- Programmable hysteresis in ON-OFF mode/li>
- Programmable time delay to activate output in ON-OFF mode
- Selectable heat/cool logic in ON-OFF control mode
- User selectable Relay Or SSR DriveOutput
- Program lock function (To prevent unauthorized tampering)
- Universal supply voltage ranges from 90 To 270 VAC
- Available in 5 Standard DIN sizes Specification
| Business Type | Exporter, Supplier |
| Brand Name | ITHERM |
| No Of Digits | 4+4 |
| Mounting Type | DIN Track Mounting |
| Display Size | 96*96 Mm |
| Output Type | Relay |
| Control Type | PID/On-Off |
| Frequency | 50/60 Hz |
| Digit Display Size | Dual Display |
| Sensor Input | Thermocouple, RTD |
| Control Output Type | Relay/SSR, Analog (mA/mV), SSR, Relay |
| Input Type | Thermocouple, Voltage (mV), RTD, Current (mA) |
Features
- Application of artificial intelligence control algorithm with auto tuning function, avoiding over shoot problem and hence precise controls.
- Multiple thermocouple & RTDs are user selectable.
- RTD PT 100,J,K,R,S,T,E,N
- Advance modularized structure thus convincing provide various output options.
- Available in various sizes.
| Business Type | Exporter, Supplier |
| Voltage | 100-240 VAC |
| Display Type | 4 Digit/7 Segment |
| Brand Name | Fuji |
| Model No. | PXF9 |
| Size | 96 X 96 Mm |
| Control Type | PID/On-Off |
| Input Type | Current (mA), Voltage (mV), RTD, Thermocouple |
| Control Output Type | Relay/SSR, Analog (mA/mV) |
| Accuracy | +/-0.2%FS |
| Mounting Type | Panel |
| Frequency | 50/60 Hz |
Features
- Precise control : Achieved a processing speed of 50 ms which is 10 times faster than conventional models. Reading accuracy is also improved from ±0.5% to ±0.2%*. Comparison under 0–850°C range, with RTD. See the Data Sheet for details.
- Easy-to-see display : MVA LCD* which offers high contrast and wide viewing angle Process value is displayed in white, Minimal translucent type vertical alignment liquid crystal display
- Practical options : Simple watt-hour metering function: allows you to monitor energy consumption
- Operating days alarm: tells you the appropriate time for maintenance work
- Most compact class in industry : 36% smaller (than conventional models) and 58-mm depth shallow body helps downsize your facility
- Universal input : You can use any input among RTD, thermocouples, voltage, current, and mV. The set-up for input change is very easy, only requires parameter change. This allows reduction of maintenance parts.

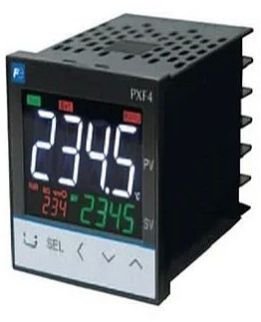

| Business Type | Exporter, Supplier |
| Voltage | 100-240 VAC |
| Type | Temperature Controller |
| Display Type | 3 Digit/7 Segment |
| Brand Name | Fuji |
| Model No. | PXF4 |
| Size | 48 X 48 Mm |
| Control Type | PID/On-Off |
| Input Type | Voltage, Current, RTD, Thermocouple |
| Control Output Type | Relay/SSR, Analog |
| Accuracy | +/-0.2% FS |
| Frequency | 50/60 Hz |
Features
- Precise control : Achieved a processing speed of 50 ms which is 10 times faster than conventional models. Reading accuracy is also improved from ±0.5% to ±0.2%*. Comparison under 0–850°C range, with RTD. See the Data Sheet for details.
- Easy-to-see display : MVA LCD* which offers high contrast and wide viewing angle Process value is displayed in white, Minimal translucent type vertical alignment liquid crystal display
- Practical options : Simple watt-hour metering function: allows you to monitor energy consumption
- Operating days alarm: tells you the appropriate time for maintenance work
- Most compact class in industry : 36% smaller (than conventional models) and 58-mm depth shallow body helps downsize your facility
- Universal input : You can use any input among RTD, thermocouples, voltage, current, and mV. The set-up for input change is very easy, only requires parameter change. This allows reduction of maintenance parts.

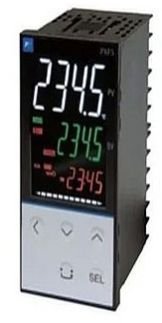

| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Fuji |
| Display Type | 4 Digit/7 Segment |
| Voltage | 100-240 VAC |
| Model No. | PXF5 |
| Size | 48 X 96 Mm |
| Control Type | PID/On-Off |
| Input Type | Thermocouple, Voltage, Current, RTD |
| Control Output Type | Analog, Relay, SSR |
| Accuracy | +/-0.2%FS |
| Mounting Type | Panel |
| Frequency | 50/60 Hz |
Features
- Precise control : Achieved a processing speed of 50 ms which is 10 times faster than conventional models. Reading accuracy is also improved from ±0.5% to ±0.2%*. Comparison under 0–850°C range, with RTD. See the Data Sheet for details.
- Easy-to-see display : MVA LCD* which offers high contrast and wide viewing angle Process value is displayed in white, Minimal translucent type vertical alignment liquid crystal display
- Practical options : Simple watt-hour metering function: allows you to monitor energy consumption
- Operating days alarm: tells you the appropriate time for maintenance work
- Most compact class in industry : 36% smaller (than conventional models) and 58-mm depth shallow body helps downsize your facility
- Universal input : You can use any input among RTD, thermocouples, voltage, current, and mV. The set-up for input change is very easy, only requires parameter change. This allows reduction of maintenance parts.
