Process Controllers
Leading Manufacturers, Exporters and Wholesaler of Digital Process Controller, Va Clave Autoclave Controller, Ult 99 Deep Freezer Controller and Process Control Instrument from Rajkot.
| Business Type | Manufacturer, Exporter, Supplier |
| Control Action | PID |
| Supply | 90 To 270 VDC |
| Output Type | Analog |
| Mounting Type | DIN Track Mounting |
| No Of Digits | 4+4 |
| Control Type | Proportional Control |
| Display Size | 48*48 Mm |
| Size | All DIN Size: 96 X 96 / 48 * 48 / 72*72 / 96 * 48 & 48*96 |
| Output | Relay / SSR / 4 To 20mA / 0 To 10 VDC |
| Input | All Type Of TCs, RTD PT 100 And All Analogue Input MA & MV |
| Accuracy | 0.3% FSD |
Features
- Universal Sensor Input
- Programmable control action PID control/ ON-OFF
- Programmable Input Signal Conditioning (Digital Filter & Zero Offset)
- Optional Current Output Available
- Optional Serial Communication Port
- Soft Start Time for 4-20 mA
- Overshoot Control Protection
- Single Step Ramp Soak
- Alarm Acknowledge & Inhibit function
- Programmable soak timer
- Four different start modes for soak timer
- Battery Backup for Soak Timer
- Timer Hold Strategy
- Settable soak time delay
- Time Delay for Compressor
- Universal supply voltage ranges from 90 to 270 VAC
- Supply 24VDC Available on Request
| Business Type | Exporter, Supplier |
| Application | Medical Applications To Perform Sterilization And In The Chemical Industry |
| Size | 96 X 96 Mm |
| Output Type | Relay |
| Voltage | 90 To 270 VAC |
| Brand Name | ITHERM |
| Mounting Type | DIN Track Mounting |
| Display Size | 48*48 Mm |
| Control Type | PID |
| Model Number/Name | VA CLAVE |
| Sensor Input | RTD |
| Input Type | Voltage (mV), RTD, Current (mA) |
Features
- Temperature Input: RTD (Pt 100), Resolution: 0.1°C
- Optional Pressure Input: 4-20mA, 0-10V Resolution 1, 0.1, 0.01, 0.001°C (Selectable)
- F0 calculation at the end of Sterilization
- Low Water Level Input available
- Excitation voltage available: 5V, 12V, 24V (Jumper Selectable)
- Programmable Input Signal Conditioning (Digital Filter & Zero Offset)
- Drying facility to avoid high outrush of pressure
- Programmable Sterilization Timer with Guaranteed Soak Time
- High Temperature Safety Alarm
- Automatic Cycle Abortion at High Temperature Limit
- Computed Saturated Steam Pressure Display
- Independent Air Purging and Sterilization Set point
- Independent Outputs for Air Outlet Valve & Steam Control
- Front/ Remote Sterilization Cycle Start Command
| Business Type | Exporter, Supplier |
| Brand Name | Itherm |
| Power | 100 To 240 VAC |
| Controller Type | Freezer Controller, Proportional |
| Usage/Application | Refrigerator |
| Display Size | 96 X 96 |

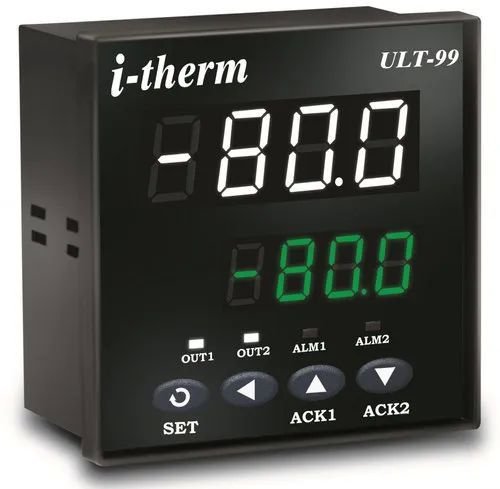

| Model Number | ULT 99 |
| Control Output Type | Relay/SSR |
| Input Type | RTD |
Features
- RTD Input for both Cascade and Cabinet System
- Independent On-Off Control Loops for Cascade and Cabinet
- Configurable Set point for triggering Cabinet Compressor
- Programmable Time Delay for both the Compressors
- Programmable Alarms (Low/ High/ Band/ Deviation)
- Relay Output for Cascade, Cabinet & Alarm
- Optional Serial Communication Port (RS-485, Half Duplex)
- DIN Standard Dimensions (mm): 96(H) X 96(W) X 65(D)
| Business Type | Exporter, Supplier |
| Voltage | 12 V DC, 24 V DC, 230 VAC |
| Country of Origin | India |
| Brand | TAIE |
| Application | Humidity, Pressure, Level Controller |
| Input Type | RTD PT 100, J, K, R, S, T, E, N, B, Linear Input 4 To 20 MA & 0 To 10 VDC |
| Output | RELAY / SSR / 4 To 20mA / 0 To 10 VDC |
