RTD Cables
Leading Manufacturers, Exporters and Wholesaler of Silicon Rubber Insulated Rtd Cable, Eltec Rtd Cables, Metal Over Braided Rtd Cable, PTFE Insulated Rtd Cable and Rtd Shielded Cable from Rajkot.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Eltec |
| Conductor | Silver Plated / Nickel Plated Copper Wires |
| Conductor Size | 28 AWG To 20 AWG Multi Stranded Conductors |
| Insulation | Silicone Rubber Or PTFE As Per User Requirement |
| Sheath Material | Silicone Rubber |
| Color Code Specification | As Per EN 60751 |
The Eltec Silicon Rubber Insulated RTD Cable features high-quality construction with silver plated or nickel plated copper wires, 28 AWG to 20 AWG multi-stranded conductors, and silicone rubber or PTFE insulation based on user preference. The sheath material is silicone rubber, and color coding follows EN 60751 specifications for easy identification and installation.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | ELTEC |
| Conductor Type | Silver Plated Copper / Nickel Plated Copper |
| Number Of Core | As Per Client's Requirements |
| Size | 24*7*32 / 26*7*34 / 20*19*32 / 22*19*34 As Per Client's Requirements |
| Operating Temp | -60 To 260 C |
| Power/Voltage | 250V / 600V / 1000V |
| Type | Rtd Cable |
| Material | PTFE / FEP / PFA / PVC |
| Application | Use To Transmit Signals From RTD SENSORS To Control Unit |

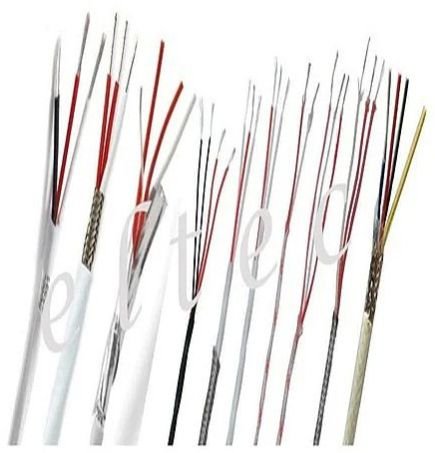

RTD Cables are used as an extension wire to transmit Signal from RTD Sensor to Control Unit. They are available in 2 wire, 3 wire configuration..
ELTEC PTFE Insulated RTD Extension wires conforms to US Military MIL – W – 16878 and Indian defense specifications JSS 51034. As per these standards, these wires are classified in three main working voltage grades.
CONSTRUCTIONAL DETAILS:
|
Conductor |
Silver Plated Copper wires sizes from 28 AWG to 20 AWG as per MIL – W - 16878 & JSS 51034, Refer Table for most popular & standard wire sizes |
|
Core Insulation |
Fused PTFE Tape , FEP, PFA Fiber Glass, Silicone Rubber Extruded, Refer Ordering Code |
|
Construction |
Parallel / Twisted Conductors |
|
No. of Triad |
1, 2 or more |
|
Outer Sheath |
Fused PTFE Tape , FEP, PFA, Fiber Glass Insulated, Silicone Rubber Extruded, Refer Ordering Code |
|
SS Shield |
Silver Plated Copper wire Braid or SS Over Metal Braid |
|
Color Coding |
Confirms to EN 60751 |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Manufacturing Of RTD SENSORS Or Extension Wire For RTD Sensors |
| Insulation Material | PTFE (Teflon) |
| Temperature Range | -50 To 250 Deg C |
| Number Of Cores | 6 Core |
| Conductor Type | Copper |
| Insulation | PTFE / FEP / PFA |
| Sheath | PTFE / FEP / PFA |
| No. Of Core | 2 / 3 / 4 / 6 Or Even More |
| Outer Shield | SS Metal Over Braid / Silver Plated Or Nickel Plated Copper Wire |
| Conductor Size | 28 AWG To 20 AWG |
| Conductor | Silver Plated Copper Wire / Nickel Plated Copper Wire |

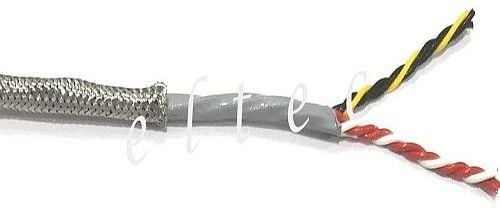

The Eltec Metal Over Braided RTD Cable is designed for manufacturing RTD sensors or as an extension wire for RTD sensors. With a temperature range of -50 to 250°C, this 6-core cable features PTFE insulation, copper conductors, and PTFE/FEP/PFA insulation and sheath materials for reliable performance in various industrial applications.
| Business Type | Manufacturer, Exporter, Supplier |
| Conductor Material | Silver Plated Copper / Nickle Plated Copper |
| Brand Name | ELTEC |
| Application | RTD Cables Are Used For Signal Transmission. |
| Power/Voltage | 250 V / 600 V |
| Size | 28 AWG To 20 AWG |
| Insulating Material | PTFE |
| Number Of Cores | 2,3,4,6 Or More |
Introducing ELTEC PTFE Insulated RTD Cable, designed for signal transmission applications. With a power/voltage rating of 250V/600V, this cable comes in sizes ranging from 28 AWG to 20 AWG. The PTFE insulating material ensures high performance and durability. Trust ELTEC for reliable RTD cables.
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Manufacturing Of RTD SENSORS & Its Extension Wires |
| Brand | ELTEC |
| Voltage | 250 V / 600 V / 1000 V |
| Length | 100 Mtrs. / 200 Mtrs. / 500 Mtrs. |
| Shielding Type | Shielded |
| Temperature Range | -50 To 250 Deg C |
| Cable Size | 28 AWG TO 18 AWG Multi Stranded |
| Type Of Cable | RTD Shielded Cable, Ptfe Insulated & Sheathed |
| Insulation Material | PTFE (Teflon) |
| Cable Conductor | Silver Plated Copper Wire / Nickel Plated Copper Wire |
| Sheath | PTFE / FEP / PFA |
| No. Of Core | 2 / 3 / 4 / 6 / 8 Or Even More |
Applications
- Manufacturing of RTD Sensors
- Furnaces & Ovens
- Plastic Processing Equipments
- Aerospace & Cryogenics
- Sensor Circuits
- Various Processing Industries
Features
- Continuous use up to 260 °C
- Single exposure up to 350 °C
- Good Thermal Durability & Strength
- Flame Retardant
- Superior Abrasion Resistance
- Better flexibility
