| Business Type | Exporter, Supplier |
| Brand Name | ELTEC |
| Application | Industrial |
| Temperature Range | -50 To 250 Deg C |
| Click to view more | |
Product Details
Wire Type
3 Wire
Accuracy
Class A
Sensor Connection Wiring
3 Wire
Termination Type
Lead Wire
Process Connection Type
Bayonet
Probe Material
Stainless Steel
Probe Diameter
0.5 - 8 Mm
Probe Length
300 - 1000 Mm
Sensor Configuration
Simplex

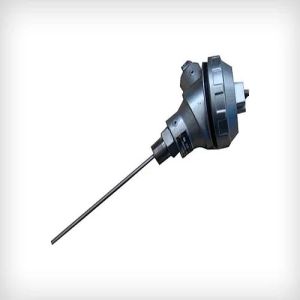

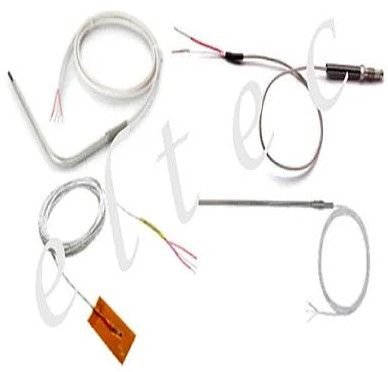

Introducing the ELTEC Pt 100 RTD Sensor, designed for industrial applications with a temperature range of -50 to 250 Deg C. This Class A sensor features a 3-wire design for accurate temperature readings. The sensor connection wiring is 3-wire with lead wire termination and bayonet process connection type for easy installation and reliable performance.
Features
- Wider temperature range from -200 C to 450 ºC and higher up to 850 ºC on request
- High Accuracy & Stability
- Variety of Sheath Material for use in different industrial environmental conditions.
- 2 wire, 3 wire, 4 wire configuration.
Applications
- Plastic Extrusion Machines, Diversified Plastic & Packing Machinery
- Automobiles & Engine Testing, Gen set
- Medical & Scientific Equipments
- Food, Pharma & Beverages
- Various Industrial Machineries
- Measuring Bearing Temperature in Motors, Turbines etc.
