| Business Type | Manufacturer, Exporter, Supplier |
| Accuracy | ± 0.1% |
| Application | Converts RTD And TC Input Into 4 To 20mA |
| Material | ABS Plastic |
| Click to view more | |
Product Details
Condition
New
Automatic Grade
Automatic
Power
24 VDC
Style

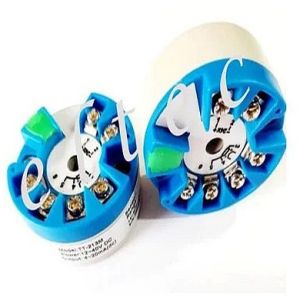

Head Mounted
Type
Temperature Transmitters
Output
4 to 20mA
Damp
0-32s
Current Limit
≤ 22mA
Saturation Current
Low 3.8mA ; High 20.6mA
Response Time
≤ 0.8s
Data Refresh Rate
4 times/sec
Power Supply
10 to 32 VDC
Sensor Type
RTD
Output Value
4 To 20mA
Input Value
RTD PT 100
Mounting
Head Mount
Programming
Can Be Programmed With User-friendly Software & USB
Features
\\n- \\n
- 2-wire technology, 4 to 20mA analogue output \\n
- High accuracy in total ambient temperature range \\n
- Internal cold junction compensation \\n
- Wide voltage supply range \\n
- Customer specific measurement range setting or expanded SETUP \\n
- Simple and user friendly software \\n
- USB communication \\n
Input Output Specifications
| Input Specifications | |
| Type | RTD PT100 |
| Measurement Range | -200 to 850°C |
| Connection Type | 3-wire connection |
| Output Specifications | |
| Signal Type | 2-wire, 4 to 20mA scalable analogue output |
| Alarm Output | 3.6mA or 22mA when sensor damage or break detected |
Technical Specifications
| Damping | 0–32 seconds |
| Current Limit | ≤ 22mA |
| Saturation Current | Low: 3.8mA; High: 20.6mA |
| Response Time | ≤ 0.8 seconds |
| Data Refresh Rate | 4 times/sec |
| Accuracy | ±0.1% |
| Stability | 0.01°C |
| Power Supply | 10 to 32 VDC |

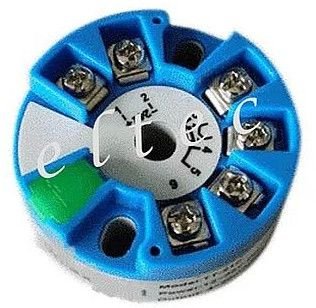

Looking for "Rtd Pt 100 Temperature Transmitter" ?
