Thermocouple Cables
Leading Manufacturers, Exporters and Wholesaler of Fiber Glass Insulated Thermocouple Wire, PTFE Insulated Shielded Thermocouple Wire, Silicon Rubber Insulated Thermocouple Cable, Ceramic Yarn Insulated Thermocouple Cable, FEP Insulated Thermocouple Wire, PVC Insulated Shielded Thermocouple Wire, PVC Insulated Thermocouple Wire, Pfa Insulated Thermocouple Wire, Kapton Polyamide Tape Insulated Thermocouple Wire, PTFE Insulated Thermocouple Cable and Mineral Insulated Thermocouple Cable from Rajkot.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Thermocouple Wire |
| Conductor Type | Thermocouple Original,Extension & Compensating Grade |
| Application | Manufacturing Of Thermocouple Sensors Or Extension Wires |

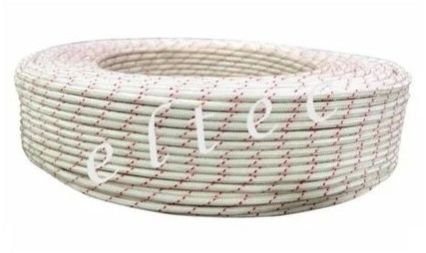

| Insulation Material | Fiberglass |
| Brand Name | Eltec |
| Size | 12 AWG To 24 AWG In Solid And Multi Strand Construction |
| Length | 100 Mtrs. / 500 Mtrs. / 1000 Mtrs. / 2000 Mtrs. |
| Accuracy | As Per ASTM E 230 - MC 96.1 & IEC 60584 - 2 |
| Temperature | 450 C |
| Referred Standards | ASTM E 230 ANSI MC 96.1 / IEC 60584-2 |
| Number Of Core | 1 Pair (2 Core) Or More |

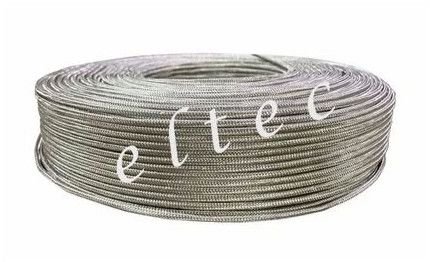

| Outer Braiding | SS Metal Braid Optional |
| Outer Jacket | Fiber Glass Braided with High Temp. Impregnation |
| Type Of Thermocouple Calibration | J, K, T, E, N, R, S, B |
| Business Type | Manufacturer, Exporter, Supplier |

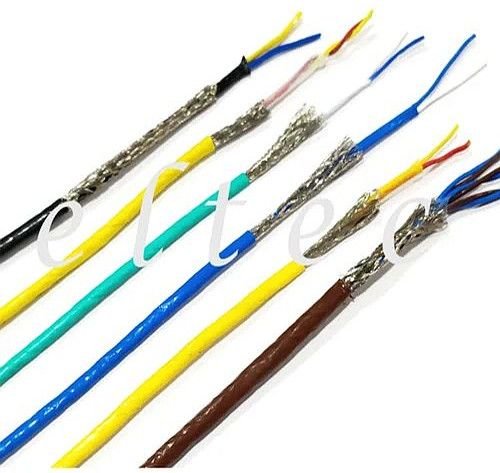

| Insulation Material | PTFE |
| Conductor Type | Thermocouple Original,Extension & Compensating Grade |
| Application | Manufacture Thermocouple Sensor & As Extension Wire To Control Unit |
| Size | 12 AWG To 24 AWG In Solid & Multi Strand |
| Brand | Eltec |
| Thermocouple Type | J, K, T, E, N, R, S, B |
| Temperature | -60 C To 260 C |
| Accuracy | As Per ASTEM E 230 & ANSI MC 96.1 & IEC 60584-2 |
| Limit Of Error | Class 1 IEC 60584-2 & As Per ASTEM E 230 & ANSI MC 96.1 |
| Referred Standards | As Per ASTEM E 230 & ANSI MC 96.1 |
| Number Of Core | 2,4,6 Or More |
| Operating Temp | -60 To 260 C |
| Outer Jacket | PTFE |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Eltec |
| Application | Manufacturing Of Thermocouple Sensors Or Used As An Extension Wire |
| Size | 12 AWG To 24 AWG In Solid & Multi Strand |
| Accuracy | As Per ANSI MC 96.1 & IEC 60584 |
| Number Of Core | 2 Core / 4 Core Or Even More |
| Thermocouple Type | J, K, T, E, N, R, S, B |
| Operating Temp | Upto 200 C |
| Outer Jacket | Silicone Cable |
| Referred Standards | ASTM E 230 & ANSI MC 96.1 |
| Type Of Thermocouple Calibration | J / K / T / E / N / R / S |
Applications
\\r\\n
- \\r\\n
- Medical Equipments \\r\\n
- Food Equipments \\r\\n
- Pharmaceuticals \\r\\n
- Laboratories \\r\\n
- Thermocouple Circuits \\r\\n
- General Industry \\r\\n
\\r\\n
\\r\\n
Features
\\r\\n
- \\r\\n
- Continuous use up to 180 °C \\r\\n
- Single Exposure up to 260 °C \\r\\n
- Excellent Flexibility \\r\\n
- Excellent softness \\r\\n
- Resistant to moisture \\r\\n
- Resistant to oil, solvent & chemicals \\r\\n
| Business Type | Manufacturer, Exporter, Supplier |
| Download |  View |
| Insulation Material | Ceramic Yarn |
| Conductor Type | Solid |
| Length | Available In 100 Mtrs. / 500 Mtrs. / 1000 Mtrs. / 2000 Mtrs. |
| Application | Used As A Temperature Sensor In Furnace |
| Brand Name | Eltec |
| Size | 20 AWG To 12 AWG Solid Wire |
| Accuracy | Class 1 |
| Number Of Core | 2 Core |
| Thermocouple Type | K |
| Shielding Type | Unshielded |
| Limit Of Error | +-1.1 Or 0.4% Whichever Is Greater |
| Referred Standards | ANSI MC 96.1 & ASTM E 230 |
| Thermocouple Grade Wire | Original Grade |
| Outer Braiding | SS Wire Optional |
| Outer Jacket | Ceramic Fiber |
| Temperature Withstanding Capacity | 1000 C |
Applications
- Metal Production
- Furnaces & Ovens
- Braided Thermocouple Replacement
- Heat Treatment
- Brick And Tile kiln
- Steel & Aluminum
- Features
- Continuous use up to 800 °C
- Single exposure up to 1100 °C
- Good Thermal Durability & Strength
- Flame Retardant
- Superior Abrasion Resistance
- Better flexibility
| Business Type | Manufacturer, Exporter, Supplier |
| Download | View |
| Conductor Type | Thermocouple Original, Extension & Compensating Grade |
| Insulation Material | PTFE |
| Material | FEP |
| Brand Name | Eltec |
| Size | 12 AWG To 24 AWG In Solid & Multi Strand |
| Thermocouple Type | J, K, T, E, N, R, S, B |
| Shielding Type | Unshielded |
| Temperature | 0 To 200 C |
| Type Of Thermocouple Calibration | J, K, T, E, N, R, S, B |
| Temperature Withstanding Capacity | -200 C To 200 C |
Application
- Manufacturing of Temperature Sensors
- Aerospace Cryogenics
- FDA Approved Products
- Chemicals Pharmaceuticals
- Petrochemical Plants
- Food Processing Plants
Features
- Continuous use up to 200 °C
- Smooth External surface finish
- Flame Retardant
- Excellent resistant to chemicals
- Excellent electrical properties
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Use As An Extension Wire From Thermocouple Unit To Control Panel |

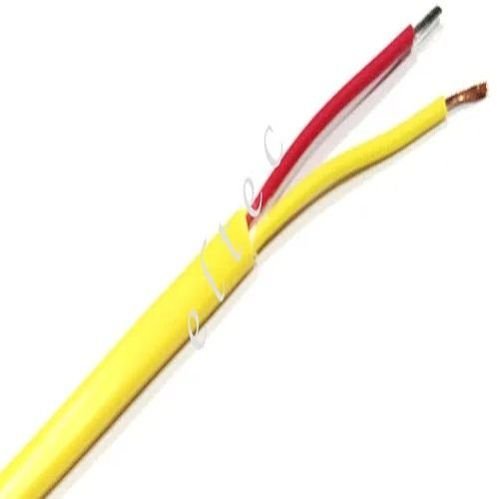

| Insulation Material | PVC |
| Brand Name | Eltec |
| Material | PVC Insulation |
| Length | 100 Mtrs. / 200 Mtrs. / 500 Mtrs. |
| Accuracy | As Per ANSI MC 96.1 & IEC 60584 |
| Type Of Thermocouple Calibration | J,K,T,E,N,R,S |
| Power/Voltage | 600 V / 110 V |
Application
- Utililties Industrial Plants
- Construction of New plants
- Petrochemicals Oil Refineries
- Testing Rig Set Up
- Thermocouple Circuits
Features
- Flame Retardant
- Moisture, Chemical Solvent Resistant
- Excellent Die Electric Strength
- 100% shield contact for noise reduction
Specification
- Conductor - Solid or stranded thermocouple grade wires from 12 AWG to 24 AWG (2.44mm to 0.51mm) as per ASTM E 230 – ANSI MC 96.1
- Core Insulation - Flame Retardant PVC with nominal thickness of 0.40mm
- No. of Pair - 1 or more optional
- Communication Wire - 22 AWG – 7 strands Tinned Copper wire Orange color PVC Insulated (4 Pair larger)
- Pair Laying - Shielded Pairs with communication wire are layed suitably and binded with polyester tape
- Cable Shield - 0.05 mm Aluminum mylar /polyester tape, 25% overlap
- Drain Wire - 22 AWG - 7 strands of Annealed Tinned Copper Wire.
- Outer Sheath - Flame Retardant PVC
- Color Coding - Confirms to ANSI MC 96.1 (International Color Code Available).
| Business Type | Manufacturer, Exporter, Supplier |
| Number Of Cores | 2 Or More |
| Conductor Type | Thermocouple Extension & Compensating Grade |
| Application | Use As An Extension Wire From Thermocouple To Control Unit |
| Color | As Per ANSI MC 96.1,IEC 60584-3 And Other International Color Code |
| Insulation Material | PVC |
| Brand Name | Eltec |
| Size | 12 AWG To 24 AWG In Solid & Multi Strand |
| Accuracy | As Per ASTEM E 230 & ANSI MC 96.1 & IEC 60584-2 |
| Thermocouple Type | J, K, T, E, N, R, S, B |
| Limit Of Error | As Per ASTEM E 230 & ANSI MC 96.1 & IEC 60584-2 |
| Referred Standards | As Per ASTEM E 230 & ANSI MC 96.1 |
| Operating Temp | 0 To 90 C |
| Power/Voltage | 300 V |
| Outer Jacket | PVC |
Application
- Plastic General Machinery
- Heating and Air Conditioning
- Plastic Processing Equipments
- Laboratories
- Thermocouple Circuits
- General Industry
Features
- Good moisture, chemical solvent resistance
- Good Thermal Durability Strength
- Flame Retardant
- Superior Abrasion Resistance
- Better flexibility
| Business Type | Manufacturer, Exporter, Supplier |
| Download | View |
| Type | Thermocouple Wire |
| Application | Use As An Extension Purpose From Thermocouple Unit To Control Panel |
| Insulation Material | PTFE |
| Material | PFA |
| Brand Name | Eltec |
| Size | 12 AWG To 24 AWG In Solid & Multi Strand |
| Shielding Type | Unshielded |
| Temperature | 260 C |
| Number Of Core | 1 Pair, 2 Pair Or Even More As Per Customer Requirement |
| Thermocouple Type | J, K, T, E, N, R, S |
| Temp. Withstanding Capacity | -65 To 260 C |
Application
- Manufacturing of Temperature Sensors
- Aerospace Cryogenics
- FDA Approved Products
- Chemicals Pharmaceuticals
- Petrochemical Plants
- Food Processing Plants
- Packaging
Features
- Continuous use up to 206°C
- Smooth External surface finish
- Flame Retardant
- Excellent resistant to chemicals
- Excellent electrical properties
| Business Type | Manufacturer, Exporter, Supplier |
| Download | View |
| Size | 12 AWG To 24 AWG In Solid & Multistrand |
| Insulation Material | PTFE |
| Shielding Type | Unshielded |
| Temperature | 300 Degree C |
| Temperature Withstanding Capacity | 300 C |
| Conductor | Thermocouple & Extension Grade For J, K, T, E, N |
| Insulation | KAPTON (Polyamide Tape) |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Use To Build A Thermocouple Sensor Or As Extension Wire |
| Brand Name | Eltec |
| Size | 12 AWG To 24 AWG In Solid & Multi Strand |
| Thermocouple Type | J, K, T, E, N, R, S, B |
| Cable Conductor | Thermocouple Original, Extension & Compensating Grade |
| Number Of Cores | 2 Core / 4 Or Multicore |
| Jacket Type | PTFE |
| Shape | Parallel Or Twisted |
| Packing Type | COIL Or Spool |
| Material | PTFE Insulated |
Application
- Manufacturing of Temperature Sensors
- Furnaces & Ovens
- Plastic Processing Equipments
- Heat Treatment
- Thermocouple Circuits
- Various Processing Industries
Features
- Continuous use up to 260 °C
- Single exposure up to 400 °C
- Inert to most chemical & fluids
- Unaffected by lubricants
- Flame Retardant
- Immune to agene fungus & water absorption
- Resistant to gamma radiation
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Used To Manufacture Thermocouple & RTD Sensors |
| Finish | SS Finish |
| Compact Insulation Material | High purity MgO, Alumina, Hafina Oxide |
| Power | 600 |
| Sheath Material | SS 316 / SS 310 / Inconel 600 |
| Conductor Material | J, K, T, E, N, RTD PT 100 |
| Number Of Cores | 2 Core, 4 Core & 6 Core |

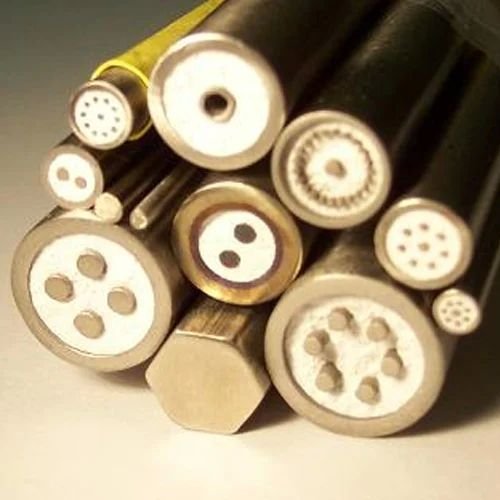

The Eltec Mineral Insulated Thermocouple Cable is designed for manufacturing thermocouple and RTD sensors. It features a durable SS finish, high purity MgO compact insulation material, and a power rating of 600. The sheath material options include SS 316, SS 310, and Inconel 600, while the conductor material is J, ensuring reliable and accurate temperature measurements in various industrial applications.
